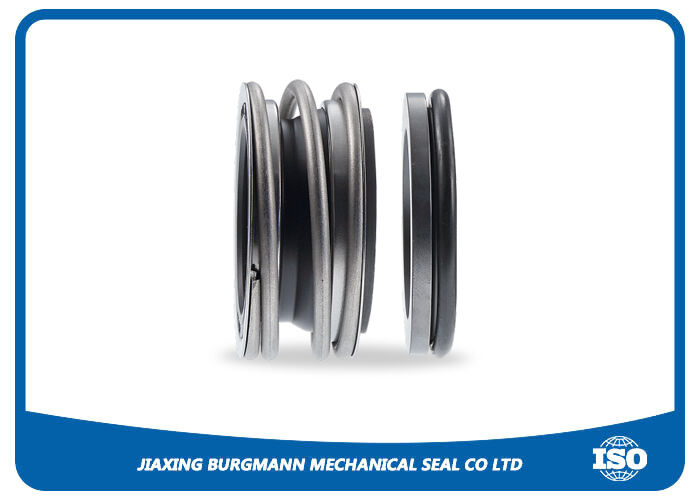

EMG1 Rubber Bellows Seal

Productgegevens

Plaats van herkomst: China

Merknaam: JG

Certificering: FDA and ISO 9001:2008

Modelnummer: MG1

Betalings- en verzendvoorwaarden

Min. bestelaantal: 5 stuks

Verpakking Details: witte doos of als eis van de klant

Levertijd: 3 ~ 10 dagen

Betalingscondities: T/T,Western Union,MoneyGram

Levering vermogen: 2000 stuks

Vind de beste prijs

Contact opnemen

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                      EMG1 rubber bellows mechanical seal, single mechanical seal with rubber bellows, EMG1 bellows seal for industrial use


Productnaam:	EMG1 rubberen balgafdichting	Functie:	Oliebestendige slijtvastheid
Metalen delen:	Roestvrij staal (bijv. AISI 304, 316)	Sollicitatie:	Ondergedompelde pompafdichting
Temperatuur:	-20~120℃	Druk:	≤1.2MPa

Productnaam:	EMG1 rubberen balgafdichting
Functie:	Oliebestendige slijtvastheid
Metalen delen:	Roestvrij staal (bijv. AISI 304, 316)
Sollicitatie:	Ondergedompelde pompafdichting
Temperatuur:	-20~120℃
Druk:	≤1.2MPa

Beschrijving

EMG1 Rubber Bellows Seal

The EMG1 is a cartridge-type mechanical seal that utilizes a flexible, rotationally-mounted rubber bellows as both the secondary sealing element and the spring mechanism. This innovative design eliminates traditional coil springs and shaft-mounted O-rings for enhanced reliability.

Aspect	Description
Core Design	Rotating elastomer bellows design; optimized geometry for improved self-alignment and reduced stick-slip; full-length shaft protection sleeve
Primary Advantages	Full interchangeability with MG1 series; tolerant of shaft deflection; protected sealing faces during installation; robust performance in demanding services
Typical Face Materials	Antimony/Resin-Impregnated Carbon, Silicon Carbide (eSiC-Q7), Tungsten Carbide
Bellows/Elastomer Materials	NBR (Nitrile), EPDM, FKM (FPM/Viton®) - Material selection is critical for fluid compatibility
Metal Parts	Stainless Steel (AISI 304, 316), Hastelloy
Recommended Applications	Industries: Chemical, Petrochemical, Pharmaceutical, Sugar, Pulp & Paper, Water & Wastewater, Food & Beverage Media: Water, wastewater, slurries (solids ≤ 5%), chemicals, oils, emulsions

Key Technical Details & Recommendations

Technical Evolution: Features optimized bellows geometry for better shaft follow-up and a proprietary PEEK-PTFE disc on the bellows foot, which acts as a self-cleaning and centering device against the shaft, enhancing reliability
Application Versatility: Suitable for centrifugal pumps, screw pumps, submersible pumps, and can be configured as a tandem or back-to-back double seal for hazardous media or higher-pressure applications
Selection Imperative: Correct selection of face material combination and elastomer compound for the bellows must be based on exact fluid composition, temperature, pressure, pH, and solids content

Operating Parameters

OPERATING LIMITS

Temperature	-20°C to 120°C
Pressure	≤ 1.2 MPa
Speed	≤ 10 m/s
Medium	Water, oil, weak corrosive medium

Material Combination

STANDARD CONFIGURATION

Sealing face: Silicon carbide
Secondary sealing: Rubber bellows
Metal component: Stainless steel

Important: Always consult the manufacturer's chemical resistance and temperature rating charts for proper material selection based on your specific application requirements.
